JL Audio M6-650x Sport Grill Speaker Specs
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |

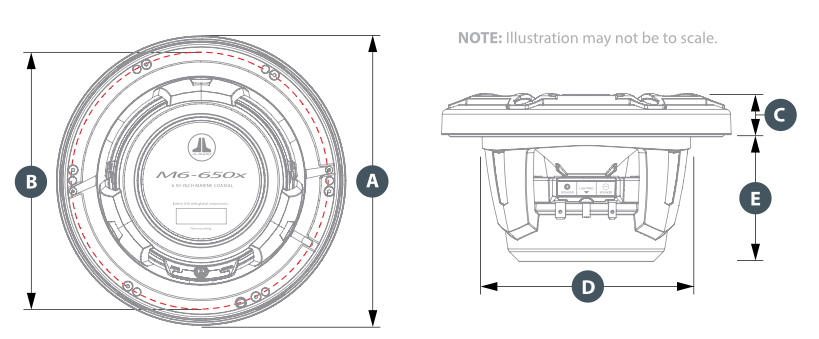

| Frame Outer Diameter (A) | 6.90 in / 175 mm |
| Bolt Hole Circle Diameter (B) | 6.13 in / 156 mm |
| Frontal Grille Protrusion* (C) | 1.02 in. / 26 mm |
| Mounting Hole Diameter (D) | 5.00 - 5.25 in / 127 - 133 mm |
| Mounting Depth (E) | 3.00 in. / 76 mm |
| *Frontal grille protrusion measured from mounting surface | |
