JL Audio XDM200/2 Amplifier Specs

JL Audio XDM200/2 Amplifier Specs

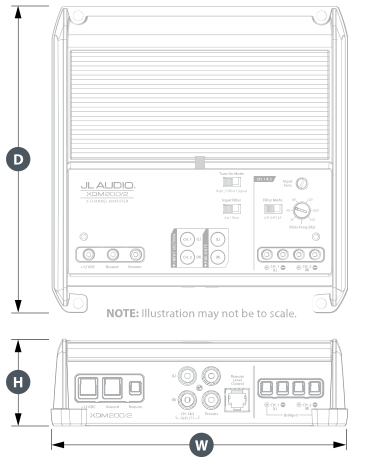

Height (H)2.05 in / 52 mm
Width (W)6.85 in / 174 mm
Depth (D)7.09 in / 180 mm
Net Weight3.75 lb / 1.70 kg
Power Specs @ 14.4v
Power Specs @ 12.5v
Power Specs @ 14.4v
@ 4 Ω75 W RMS x 2
@ 2 Ω100 W RMS x 2
Bridged @ 4Ω200 W RMS x 1
Power Specs @ 12.5v
@ 4 Ω60 W RMS x 2
@ 2 Ω90 W RMS x 2
Bridged @ 4Ω180 W RMS x 1
General Specs
Signal Processing
General Specs
Frequency Response12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω>150 / 50 Hz
Damping Factor @ 2 Ω>75 / 50 Hz
THD+N @ Rated Power<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge8 AWG wire
Fuse Rating20 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s)Low-Pass or High-Pass
Filter Slope(s)12 dB/octave
Filter Frequency Range50 Hz - 500 Hz
Detented, Calibrated Filter Freq. PotentiometerYes
Filter Defeat FunctionYes
Remote Level ControlOptional HD-RLC or MHD-RLC (water-resistant)
Security Cover for ControlsYes
Pass-Through Preamp OutputBuffered
