JL Audio XDM1000/1 Amplifier Specs

JL Audio XDM1000/1 Amplifier Specs

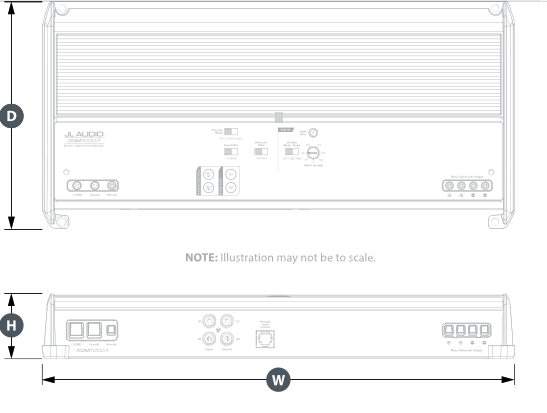

DIMENSIONS
Height (H)2.05 in / 52 mm
Width (W)14.73 in / 374 mm
Depth (D)7.09 in / 180 mm
Power @ 14.4v
Power @ 12.5v
Power @ 14.4v
OUTPUT POWER SPECS @ 14.4 V
@ 4 Ω600 W RMS x 1
@ 3 Ω800 W RMS x 1
@ 2 Ω1000 W RMS x 1
@ 1.5 ΩN/A
Power @ 12.5v
OUTPUT POWER SPECS @ 12.5 V
@ 4 Ω500 W RMS x 1
@ 3 Ω650 W RMS x 1
@ 2 Ω800 W RMS x 1
@ 1.5 ΩN/A
General
Signal Processing
General
GENERAL SPECS
Frequency Response7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power>83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W>53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω>1000 / 50 Hz
Damping Factor @ 2 Ω>500 / 50 Hz
THD+N @ Rated Power<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge4 AWG wire
Fuse Rating80 A (AFS, AGU or MaxiFuse™)
Signal Processing
SIGNAL PROCESSING SPECS
Filter Mode(s)Low-Pass only
Filter Slope(s)12/24 dB/octave
Filter Frequency Range50 Hz - 500 Hz
Detented, Calibrated Filter Freq. PotentiometerYes
Filter Defeat FunctionYes
Infrasonic Filter30 Hz, defeatable
Bass Boost EQNo
Output Polarity SwitchNo
Remote Subwoofer Level ControlOptional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost ControlNo
Pass-Through Preamp OutputBuffered
