JL Audio MediaMaster MM55 Source Unit Specs

JL Audio MediaMaster MM55 Source Unit Specs

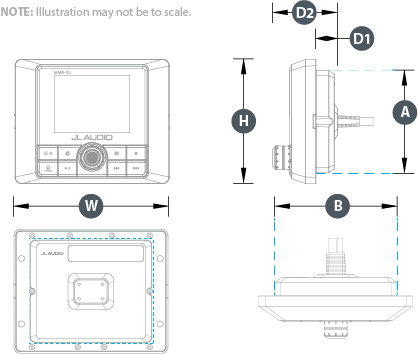

Height (H)3.74 in / 95 mm
Width (W)4.65 in / 118 mm
Depth (D1)
Depth (D2)2.36 in / 60 mm
Mounting Hole Height (A)3.15 in / 90 mm
Mounting Hole Width (B)3.74 in / 95 mm
Audio
Built-In Amplifier: Yes
Amplifier Power: 100w (25wx4)
Audio Zones: 3 w/ Dedicated Subwoofer Output
- Zone 1: Built In Amplifier / External Amplification
- Zone 2: Built In Amplifier / External Amplification
- Zone 3: Requires External Amplification
Connectivity
Sources:
AM/FM
Bluetooth
USB Audio
AUX

Physical Connections:
Antenna (Motorola)
AUX 1
Zone 1 (L/R/SUB)
Zone 2 (L/R/SUB)
Zone 3 (L/R/SUB)
USB 1
Remote
NMEA2000 (LEN 1)
Power (12v Pos, Neg, Remote, Illumination)
General
Power:​
Power Input: 10 - 15.9 VDC
Power Draw: 15 A Max

Screen:
Type: TFT LCD Backlighted
Size: 2.8"
Resolution: 320 x 240

Other:
Water Rating: IP67
Temperature Range: -4 F to +158 F (-20 C to +70 C)
