JL Audio MediaMaster MM105 Source Unit Specs

JL Audio MediaMaster MM105 Source Unit Specs

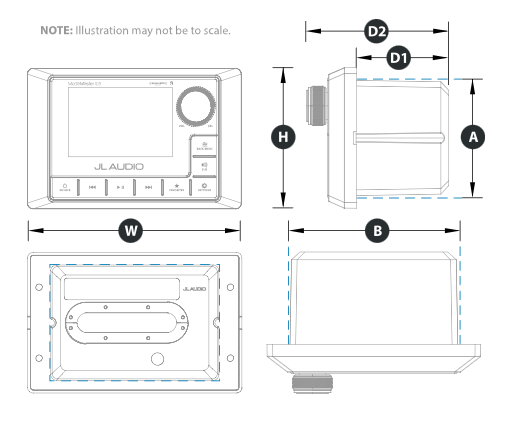

Height (H)3.91 in / 99 mm
Width (W)5.95 in / 151 mm
Depth (D1)2.56 in / 65 mm
Depth (D2)3.94 in / 100 mm
Mounting Hole Height (A)3.27 in / 83 mm
Mounting Hole Width (B)4.72 in / 120 mm

Audio
Built-In Amplifier: No
Audio Zones: 4 w/ Dedicated Subwoofer Output
Connectivity
Sources:
AM/FM
Bluetooth
USB Audio x2 (iPhone® / iPod®)
AUX x2
SiriusXM ready (requires optional SiriusXM Connect vehicle tuner)

Physical Connections:
Antenna (Motorola)
AUX 1
AUX 2
Zone 1 (L/R/SUB)
Zone 2 (L/R/SUB)
Zone 3 (L/R/SUB)
Zone 4 (L/R/SUB)
USB 1/Phone
USB 2
Remote
NMEA2000 (LEN 1)
SiriusXM
Power (12v Pos, Neg, Remote, Illumination)
General
Power:
Power Input: 10 - 15.9 VDC
Power Draw: 1.5 A Max
​
Screen:
Type: TFT LCD Backlighted
Size: 3.5"
Resolution: 320 x 480
​
Other:
Water Rating: IP67
Temperature Range: -4 F to +158 F (-20 C to +70 C)
