JL Audio M6-880x Luxe Grill Speaker Specs
| Continuous Power Handling (RMS) | 125 W |
| Recommended Amplifier Power (RMS) | 50 - 250 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 38 Hz - 20 KHz ± 3 dB |

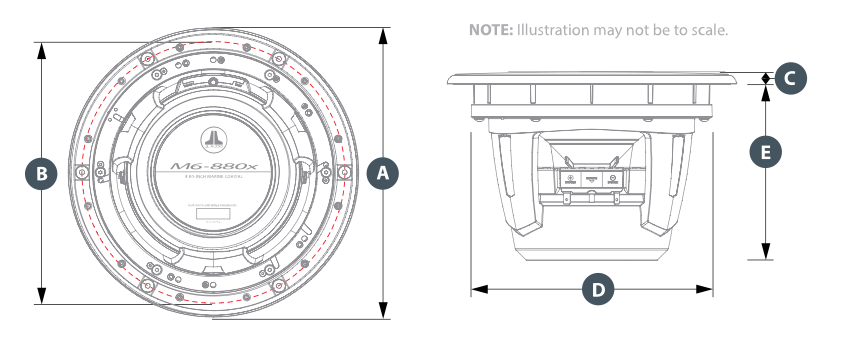

| Frame Outer Diameter (A) | 10.25 in / 260 mm |
| Bolt Hole Circle Diameter (B) | 9.27 in / 235 mm |
| Frontal Grille Protrusion* (C) | 0.48 in / 12 mm |
| Mounting Hole Diameter (D) | 8.625 in / 219 mm |
| Mounting Depth (E) | 6.30 in / 160 mm |
| *Frontal grille protrusion measured from mounting surface | |
