JL Audio M6-770x Luxe Grill Speaker Specs
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 - 200 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB. |

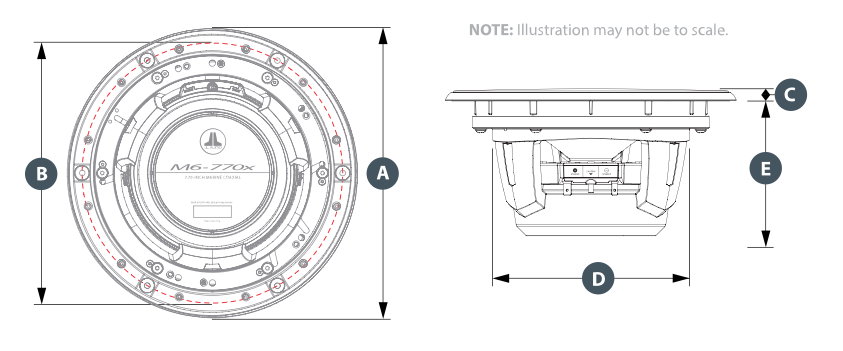

| Frame Outer Diameter (A) | 9.13 in / 232 mm |
| Bolt Hole Circle Diameter (B) | 8.18 in / 208 mm |
| Frontal Grille Protrusion* (C) | 0.38 in. / 10 mm |
| Mounting Hole Diameter (D) | 7.50 in / 191 mm |
| Mounting Depth (E) | 4.26 in. / 108 mm |
| *Frontal grille protrusion measured from mounting surface | |
