JL Audio M6-650x-Luxe Grill Speaker Specs
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |

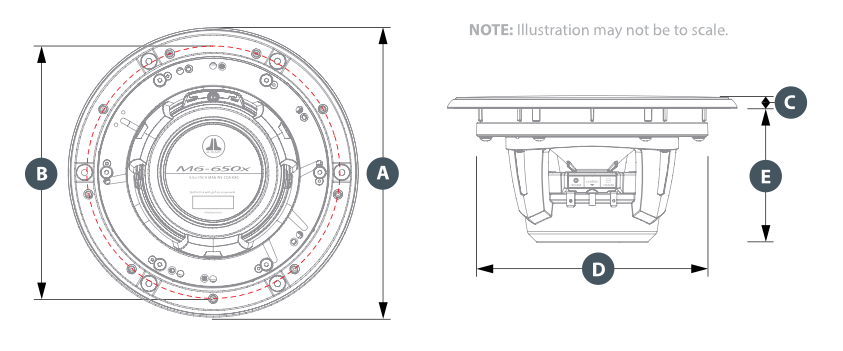

| Frame Outer Diameter (A) | 8.34 in / 212 mm |
| Bolt Hole Circle Diameter (B) | 7.39 in / 188 mm |
| Frontal Grille Protrusion* (C) | 0.37 in / 9 mm |
| Mounting Hole Diameter (D) | 6.75 in / 172 mm |
| Mounting Depth (E) | 3.87 in. / 98 mm |
| *Frontal grille protrusion measured from mounting surface | |
