JL Audio M3-770x Classic Grill Speaker Specs
| Continuous Power Handling (RMS) | 70 W |
| Recommended Amplifier Power (RMS) | 20 - 140 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |

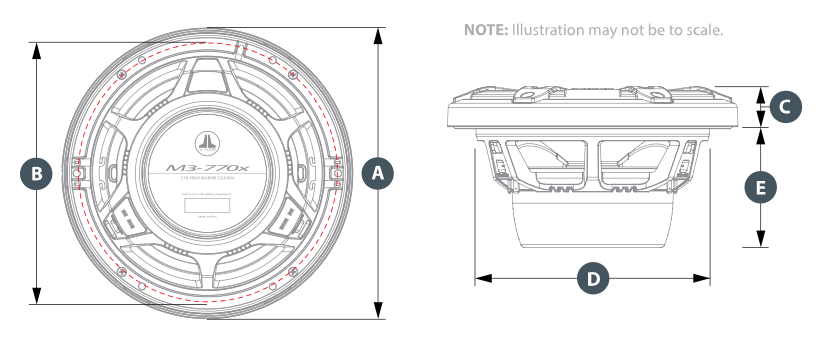

| Frame Outer Diameter (A) | 7.70 in / 196 mm |
| Bolt Hole Circle Diameter (B) | 6.92 in / 176 mm |
| Frontal Grille Protrusion* (C) | 1.10 in / 28 mm |
| Mounting Hole Diameter (D) | 6.25 in / 159 mm |
| Mounting Depth (E) | 3.17 in / 81 mm |
| *Frontal grille protrusion measured from mounting surface | |
