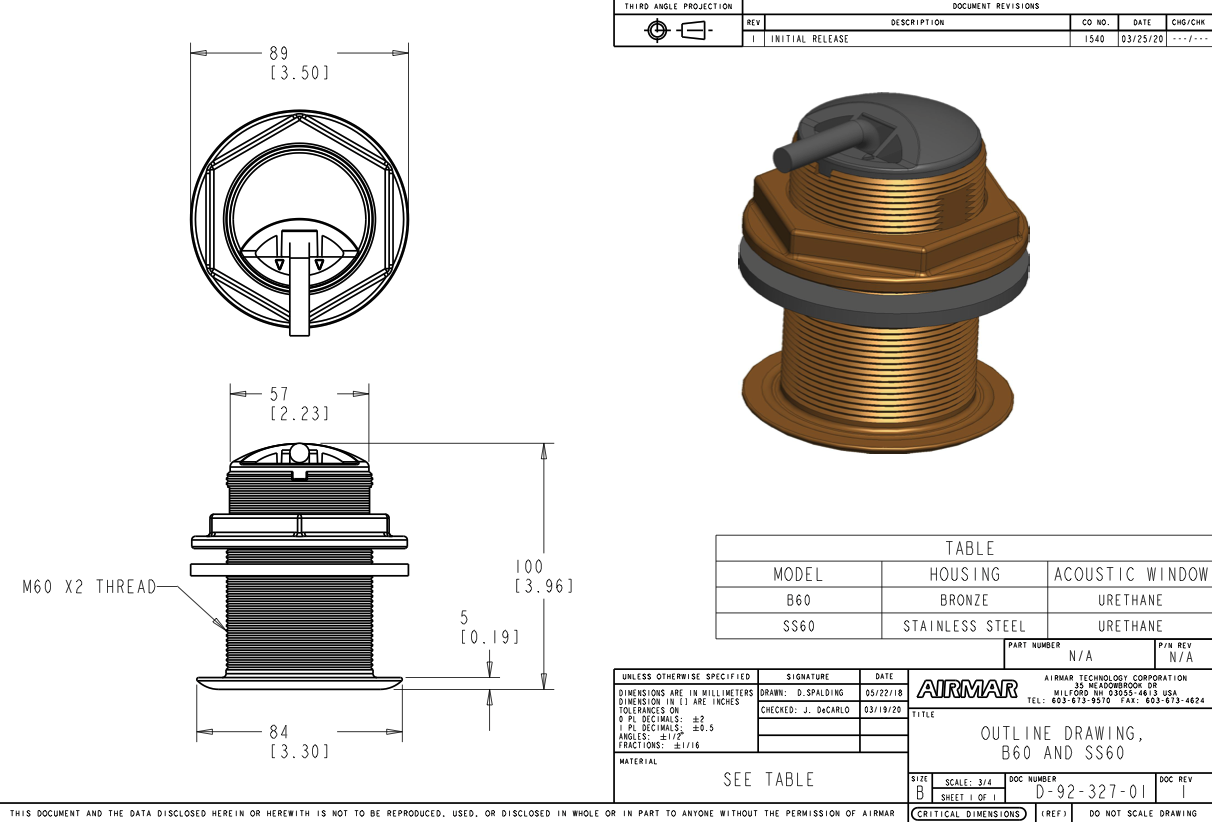

Garmin B60 Thru-Hull Transducer Detailed Drawing

• Related Articles

• Garmin B164 Thru-Hull Transducer

  Specs Installation Manual Dimensional Drawing Acoustical Data Brochure Specs Sonar: Power: 1kW Frequency: 50/200 kHz Beamwidth: 22°x20°/6°x6° Max Depth: 1800' Temperature: Yes Physical: Type: Tilted Element Thru-Hull Hole Size: 95mm or 3-3/4" Usable ...

• Garmin B60 Thru-Hull Transducer Specs

  Physical Sonar Detailed Drawing Acoustical Data Physical Usable Shaft Length: 2.70" (68.5 mm) Weight: 3 lbs (1.4 kg) MOUNTING: Type: Tilted Element Thru-Hull Hole Size: 2 3/8" (60mm) Sonar Power: 600 W Frequency: 200 / 50 kHz Beamwidth: 45°/12° Max ...

• Garmin B60 Thru-Hull Transducer Installation Manual

  Manual Attached
